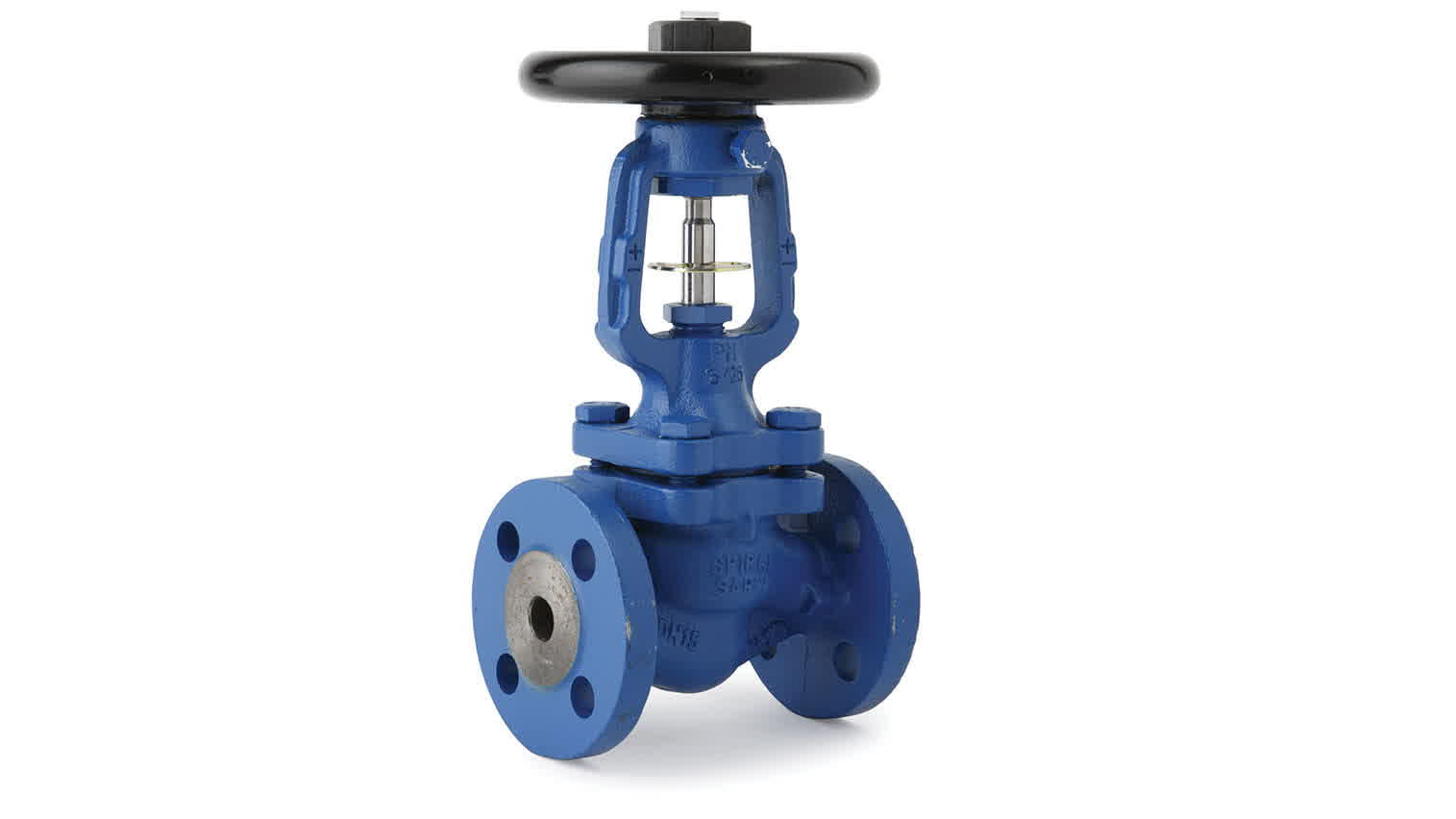

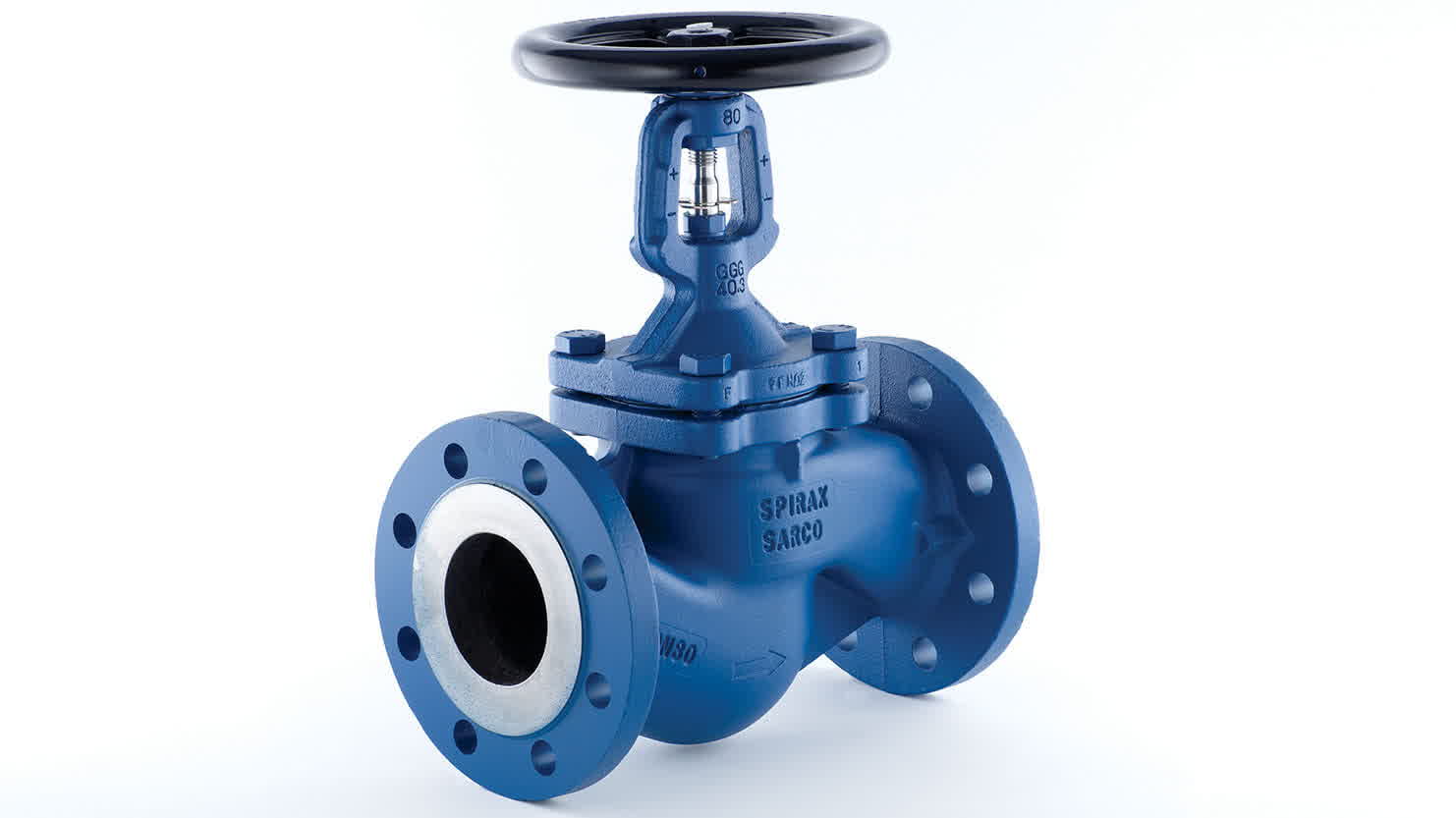

BSA2T bellows sealed stop valve

#Where BSA2T fits in the bellows sealed range

The BSA2T bellows sealed stop valve sits within the Spirax Sarco BSA and BSAT family for users who need dependable manual isolation with stronger control of external stem leakage than conventional packed stop valves normally provide. In current family material, the BSA2 / BSA2T branch represents the ductile iron part of the range and is positioned for steam, condensate and broader industrial fluid duties where reliable shut-off and lower maintenance attention are both important.

#Why the bellows sealed construction matters

The main value of BSA2T is the bellows sealed stem arrangement. The family reference material positions this design as a way to eliminate stem gland leakage, improve shut-off safety and reduce avoidable energy loss in steam systems. That makes the valve more relevant for plant areas where containment, cleaner operation and safer isolation for maintenance matter more than the lowest first-cost valve choice.

The wider BSA and BSAT family also uses double bellows sealing to support longer service life. Combined with a robust manual stop valve format, this helps BSA2T suit applications where the valve may stay in service for long periods and where access for repeated maintenance is not desirable.

#Typical services and plant duties

Based on the available family documentation, BSA2T can be considered for:

• steam mains and branch isolation
• condensate and hot water shut-off points
• gas and liquid process isolation duties
• maintenance isolation points where external leakage control matters
• duties that may require limited manual throttling rather than shut-off alone

The broader isolation valve overview also presents this style of valve as relevant where maintenance safety, leakage control and long life are key selection factors across industrial steam and condensate systems.

#Body material, pressure class and size positioning

In the current product-family source material, BSA2 / BSA2T is identified as the ductile iron option within the bellows sealed stop valve range. The same source associates this branch with typical pressure ratings of 16 bar or 25 bar, depending on version, and with sizes extending up to DN250.

That positioning makes BSA2T a practical middle-range option for users who need a more robust isolation format than utility stop valves, but who do not need to step into the higher-pressure forged or carbon steel branches of the family.

#Shut-off versus throttling use

Within the family naming, the T version is associated with a throttling plug configuration. That means BSA2T is not limited to simple on-off isolation and may also support limited manual throttling or bypass-type duties where a fixed operating position is required.

That said, the technical family reference is clear that throttling use still has boundaries. When the valve is used for regulation rather than isolation, the pressure drop and target flow need to be checked carefully so noise, vibration and unnecessary wear are avoided. The same technical material also notes maximum differential pressure guidance for throttling duties, with tighter limits as line size increases.

#What to confirm before final selection

Before ordering or standardising BSA2T on a project, users should still confirm:

• the exact end connection and flange standard needed on site
• the pressure class required for the duty
• the actual size and flow target
• whether the valve will be used for shut-off only or for limited throttling
• whether EN 10204 3.1 certification is required with the order

Available family reference material indicates that BSA2 and BSA2T are among the versions that can be supplied with EN 10204 3.1 certification when specified.
