Steam isolation valves
Spirax Sarco isolation valves help operators shut off steam, condensate and process lines safely for maintenance, equipment protection and plant section isolation. The range brings together steam isolation valves, ball valves and stop valves for applications where dependable shut-off, maintainability and leakage control matter.
Use this page to compare bellows sealed stop valves, ball valves and HV3 stop valves, then move into the valve family that best matches your pressure, temperature, pressure-drop and operating requirements.
If you are comparing options, start with duty: quarter-turn ball valves are often preferred where low pressure drop and straightforward automation matter, while stop valves and bellows sealed stop valves are more often chosen where robust steam shut-off and tighter leakage control expectations shape the specification.
Overview
Isolation valves are used to divert flow, isolate plant sections and make maintenance safer. In steam systems, the right shut-off valve helps protect people, reduce unplanned leakage and keep connected equipment easier to service. Valve selection should reflect more than pipe size. Fluid type, pressure, temperature, flowrate, allowable pressure drop, frequency of operation, method of actuation and external leakage expectations all influence which isolation valve design is most suitable. Ball valves are often chosen where quarter-turn operation, straightforward automation and low pressure drop are priorities. Full bore options can also be useful where upstream turbulence needs to be minimised, such as around flow measurement or sensitive downstream equipment. Stop valves and bellows sealed stop valves are typically used where users need positive shut-off together with robust service in steam duty. Bellows sealed designs are especially relevant when controlling stem seal leakage, reducing maintenance attention and supporting low-emission operation are part of the specification. A complete isolation arrangement often sits alongside other pipeline ancillaries such as strainers, check valves, separators and gauges. Spirax Sarco helps users move from valve family selection into the wider steam-system components around the isolation point.

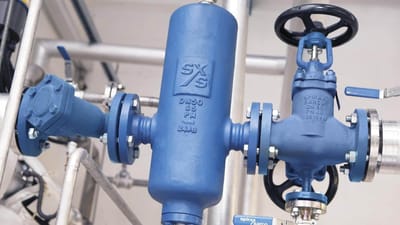

Bellows sealed stop valves
Bellows sealed stop valves help eliminate stem seal leakage and support low-emission shut-off in demanding steam isolation duties.
Ball valves
Ball valves provide fast quarter-turn shut-off, broad material and bore options, and dependable isolation across steam and industrial fluid services.
HV3 stop valves
HV3 stop valves deliver robust manual shut-off for steam and condensate duties where accurate isolation and straightforward maintenance are required.
How to choose the right steam isolation valve
Isolation valve selection usually becomes easier when buyers compare shut-off duty, pressure drop, leakage control, automation needs and the surrounding steam-system arrangement rather than starting from product names alone.
| Valve family | Most relevant when | Typical selection priority | Next route |
|---|---|---|---|
| Ball valves | Quarter-turn operation, low pressure drop and straightforward automation matter | Fast shut-off, compact actuation, full bore options where turbulence should be minimised | Browse ball valves |
| HV3 stop valves | Manual linear shut-off is preferred for general steam and condensate duties | Robust service, accurate shut-off and straightforward maintenance access | Browse HV3 stop valves |
| Bellows sealed stop valves | Stem seal leakage control and low-emission shut-off requirements carry more weight | Containment, reduced packing-maintenance concerns and higher leakage-control expectations | Browse bellows sealed stop valves |
Steam isolation valve FAQ
What are steam isolation valves used for?
Steam isolation valves are used to shut off steam, condensate or process lines so operators can isolate equipment, protect plant sections and carry out maintenance more safely. In practical terms, they support shut-off integrity, maintainability and control of leakage risk around the isolation point.
When should you choose a ball valve?
Ball valves are typically chosen where quarter-turn operation, straightforward automation and low pressure drop are priorities. Full bore ball valves can also be useful where upstream turbulence should be minimised, for example around flow measurement or sensitive downstream equipment.
When should you choose a stop valve or bellows sealed stop valve?
Stop valves are often selected where users need robust manual shut-off in steam duty, while bellows sealed stop valves become more relevant when stem seal leakage control, low-emission operation and reduced packing-maintenance attention are part of the specification.
What else should be installed around an isolation valve?
An isolation point is often designed with supporting ancillaries such as strainers, check valves, separators and gauges. The right surrounding arrangement depends on fluid condition, reverse-flow risk, moisture carryover, maintenance access and how the isolated section will be operated.
Continue your Spirax Sarco isolation valve research
Isolation valve selection often sits inside a wider steam-system decision covering maintenance access, leakage control, automation and application fit.
Understand the Spirax Sarco approach
Start with Spirax Sarco if you need broader context on steam expertise, international support and how valve choice fits wider thermal energy systems.
Choose isolation valves by application
Use industry pages when shut-off requirements depend on sector priorities such as hygiene, energy efficiency, reliability or compliance.
Connect valves with control solutions
Move into control valves, actuators and pressure control products when isolation needs sit alongside automated steam or process control.
